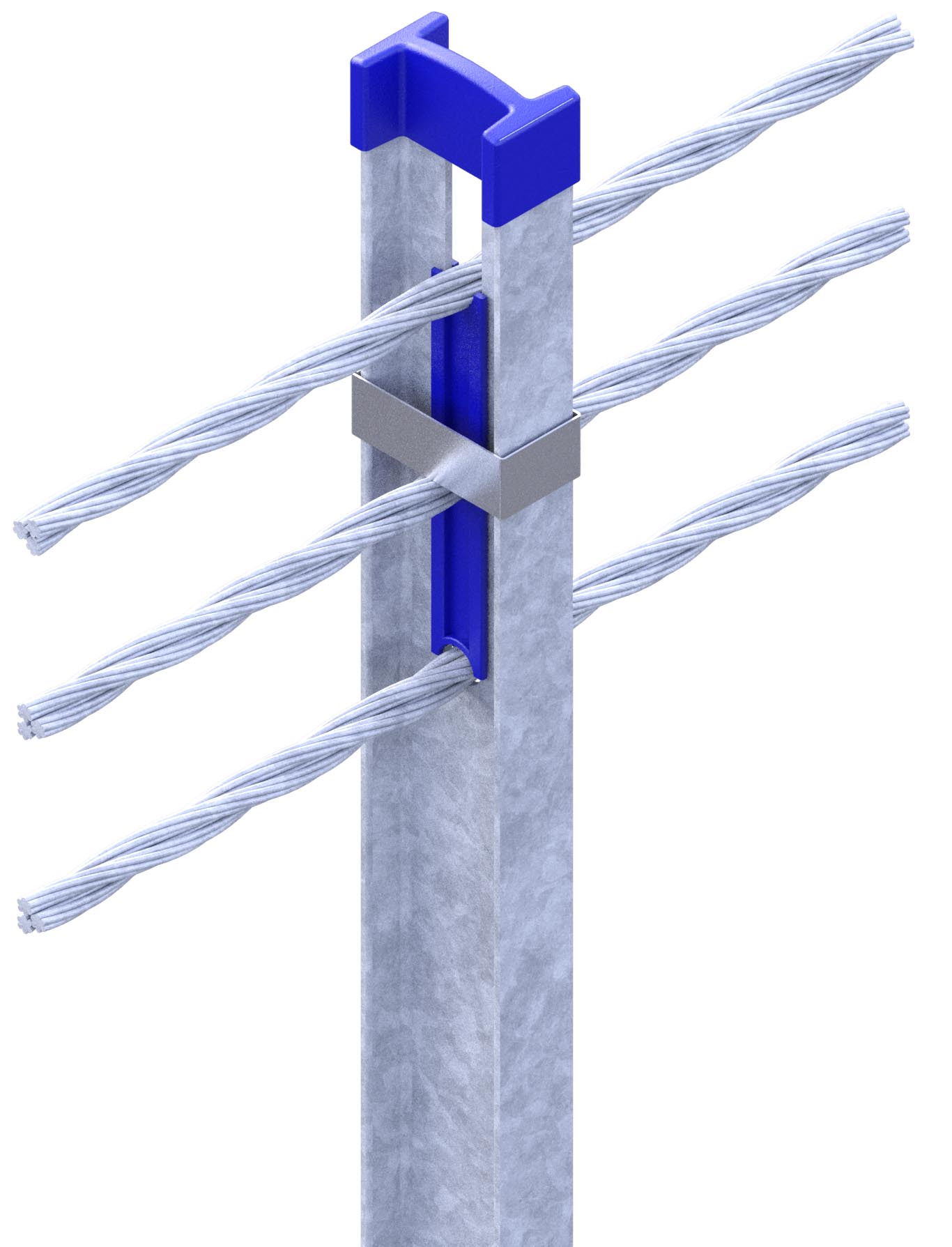

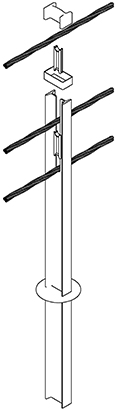

Two-sided cable barrier to be installed as median- and/or side barrier. Safence 34RCI-96 utilizes 3 or 4 wire ropes and can be configured with either Safence C-post or Safence I-post, which are fully equivalent in terms of assembly method and working features.



GWP A1 - A5: 20.27 - 22.13 kg CO2e/m
GWP B1 - B7: 0.39 - 0.45 kg CO2e/m y

In anticipation of the publication of c-PCR – Guardrails and bridge parapets as well as the conforming EPD, the Global warming potential (GWP) has been self-assessed with conservative assumptions through the supply-chain. The current values will be revised in connection with the publication of SAFENCE EPD.


2.5 m Post Distance

Containment Level: N2
Impact Severity: A
Normalized Working Width: W4 (1.3 m)
Normalized dynamic deflection: 1.3 m


3.0 m Post Distance

Containment Level: N2
Impact Severity: A
Normalized Working Width: W5 (1.6 m)
Normalized dynamic deflection: 1.6 m
