Reflectors
Blue Systems supply road barrier reflectors. We have devided our reflector line into four subgroups;
High beam reflectors - installed on top of both median and side barriers. Eliminates the need for delineator posts.
Dipped beam reflectors - installed around the base of median and side barriers.
Slope fence reflecors - installed on top of slope fence posts. Eliminates the need for delineator posts.
Other reflectors.
Below, we depict standard line of reflectors. But we also produce reflectors for all other barrier producers as well as other barrier technologies - we are also very keen on designing tailor made solutions to fit your specific need. Please do not hesitate to contact Blue Systems for further dialogue.
High beam reflectors:
RA100 - Median reflector, high beam - Installed on median barriers with traffic from both sides.
RA101 - Side refector, one-sided high - Installed on side barriers on road with median separation.
RA102 - Side refector, two-sided high - Installed on side barriers on road without median separation.
RA103 - Yellow median reflector, high - Installed to mark openings in barriers.
RA104 - Y. side reflector, one-s high - Installed to mark openings in barriers.
RA105 - Y. side reflector, two-s high - Installed to mark openings in barriers.
Dipped beam reflectors:
RA130 - Reflector for dipped beams - Installed on median & side barriers, reflecting in all directions.
RA131 - Yellow reflector, dipped-beam - Installed to mark openings in barriers.
FS-BA(-1/-2) - W profile steel beam reflector, one or two-sided.

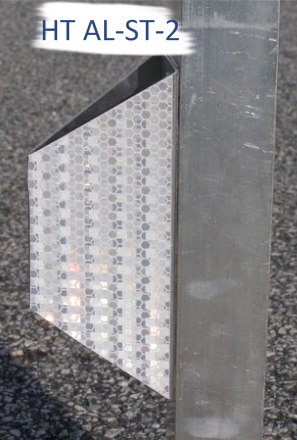

AL-ST(-1/-2) - Post reflector, one or two-sided.
Slope fence reflector:

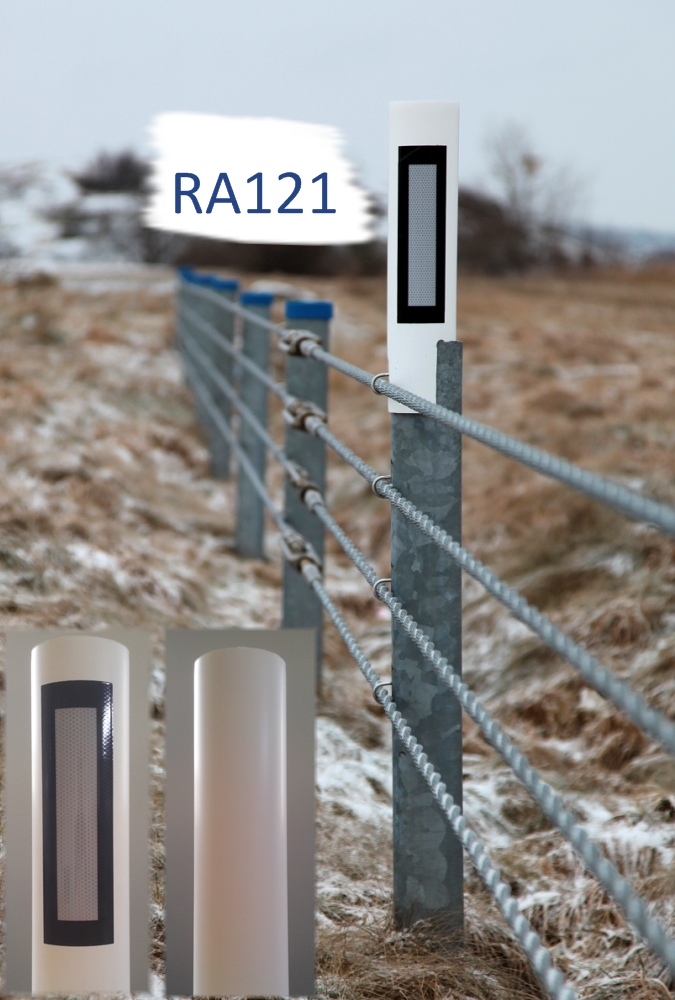

RA121 - Slope reflector, one-sided - Installed on right side slope barriers on road with median sep.
RA122 - Slope reflector, two-sided - Inst. on right side slope barriers on road without median sep.
RA140 - Slope reflector - For dipped beams.
Other reflectors:
